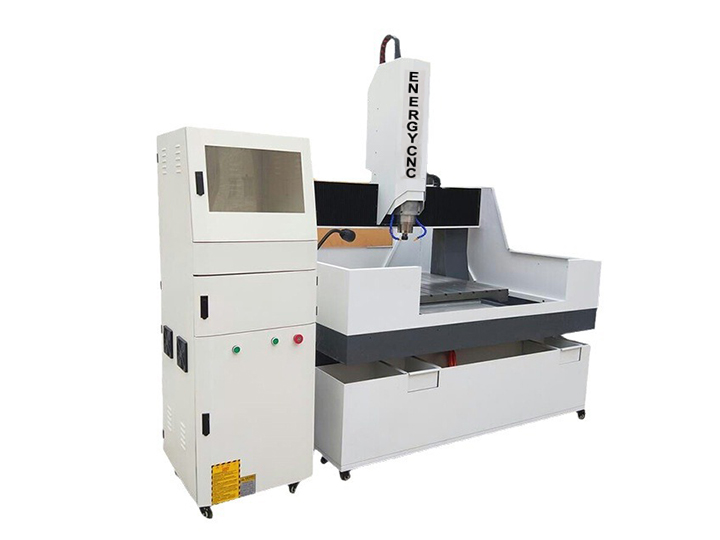

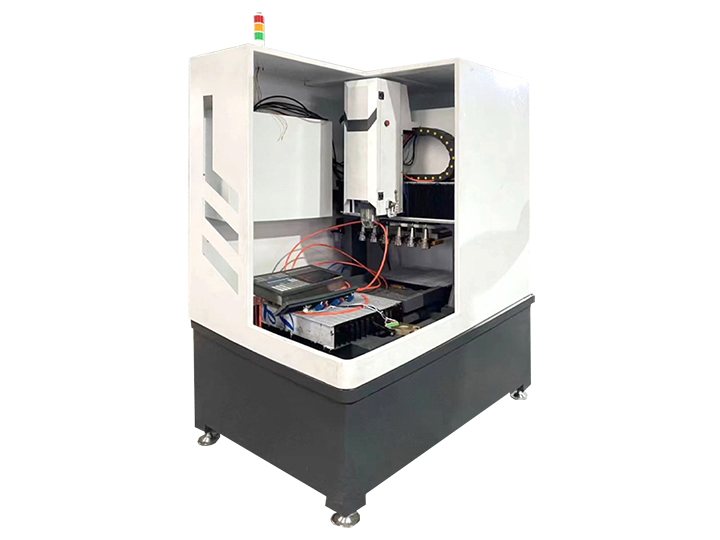

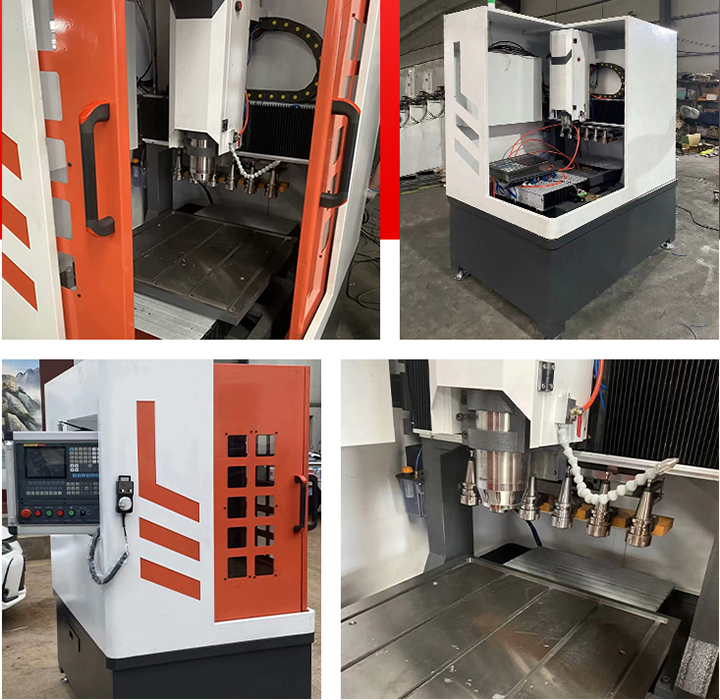

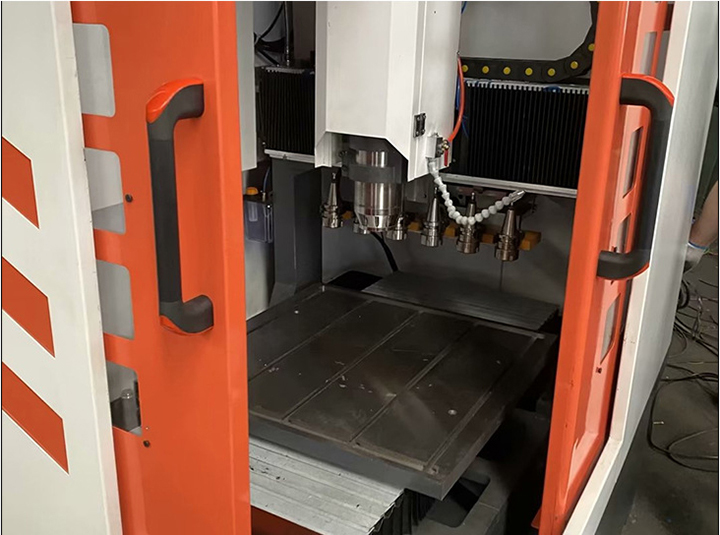

Features of 3D CNC metal milling machine:
1.Gantry structure: Whole cast-iron structure, steady structure, high rigidity, precision 0.01mm. The double column is whole part, greatly increase machine rigidity.
2.Adopts high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency, long-lifetime, it can do a long time continuous working.
3. All three axis adopt Germany ball screw and Taiwan linear orbits to make sure the accuracy and reposition precision.
4. The CNC mill adopts table movement to keep stable and high precision.
5. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or atomization liquid through or spray nozzle.
6. Adopts advanced Taiwan LNC 3 axis control system has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
7. Adopts Japan YASKAWA servo motor with high accuracy and high power make amplitude smaller and three-axis more stable.
8. Half enclosed design, it adopts external circulating cutting oil processing way. The Machine body is fully casting with stable structure and great weight-bearing ability. It can ensure safe and contamination-free work.
9. Quality assurance: we will test the cue with laser interferometer before leaving the factory.
10. It is a kind of multi-functional CNC machine, which is similar to the ordinary numerical control machine, the CNC milling machine realizes the engraving and milling process automatically through that the numerical control system controls the milling machine movement according to processing procedure code.
Applications of 3D CNC metal milling machine:
1.CNC milling machine is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum and plastics.
2.CNC milling machine is widely used on automotive, injection mould, ironware mould and engrave mould industries.
3.CNC milling machine is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size molds.
4.CNC milling machine is used for iron, copper, aluminum, stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT board, timber, gemstone, marble, aluminum and plastic composite panel, etc.
Technical parameters of 3D CNC metal milling machine:
Description | Parameter |
X,Y,Z Working Area | 600x600x300mm |
Worktable | T-slot moveable table |

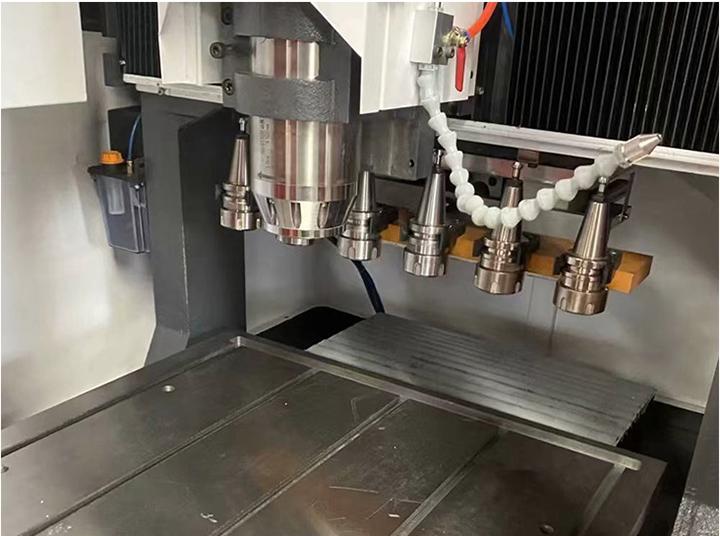

Spindle Motor | 4.5kw ATC spindle |
X/Y/Z Axis Movement Accuracy | ±0.01/300mm |
X/Y/Z Axis Repetition Accuracy | 0.005mm |
Rotating Speed | 18000rpm |
Motor Drive | Servo Motors |
Drive Mechanism | Taiwan TBI ball screw transmission |
Max Motion Speed | 30000mm/min |
Max Engraving Speed | 20000mm/min |
Controlling Code | G code ; *.u00 ; *.mmg ; *.plt . |
Compatible CAD/CAM Softwares | JDpaint/ Artcam |
Control System | Taiwan LNC control system |
Collets Type | Φ3.175 -Φ12.7 |
Operating Voltage | 3Phase AC380V/220V, 50-60Hz |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
N/G weight | 13001400kg |
Package dimension | 2300*1970*2000mm |

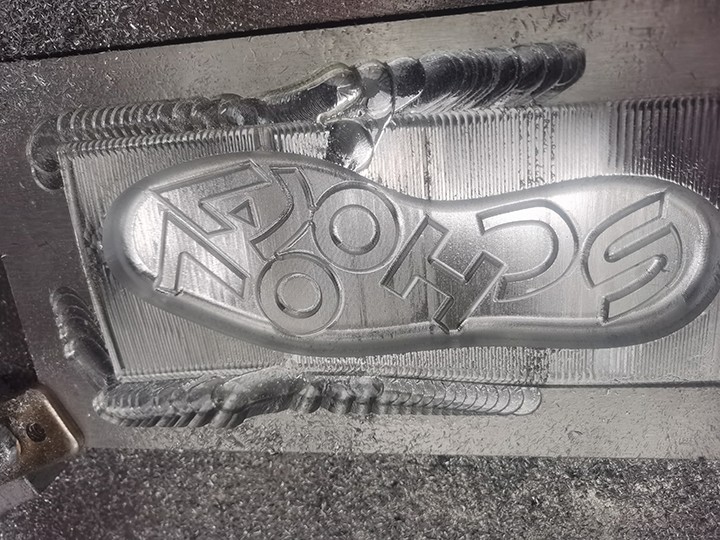

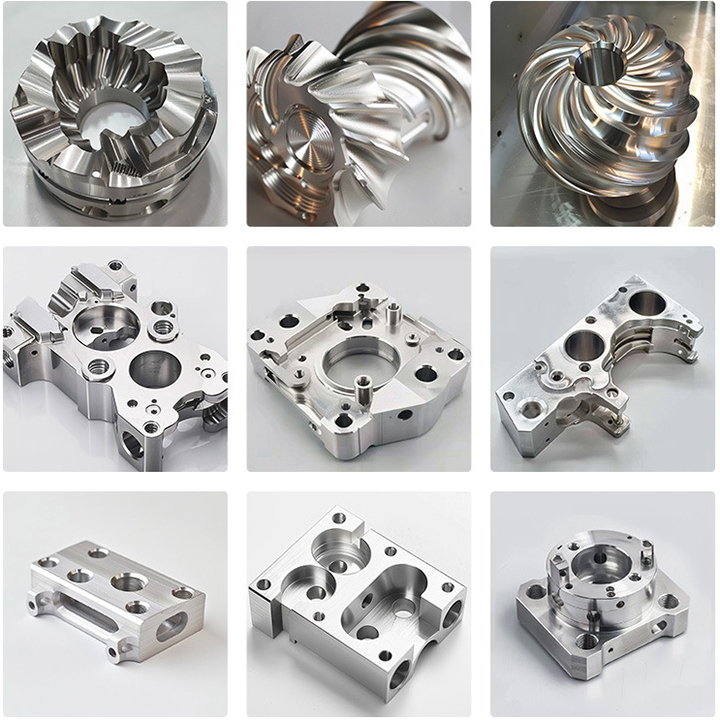

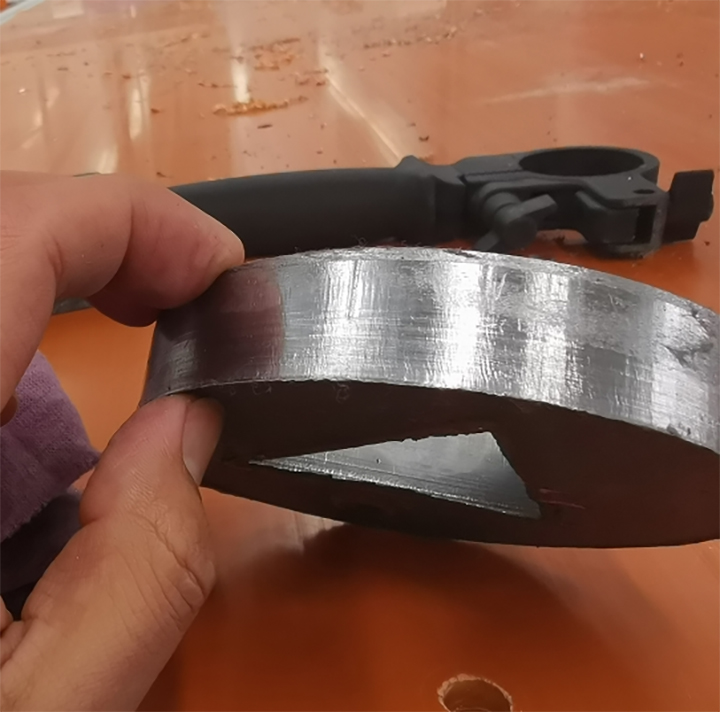

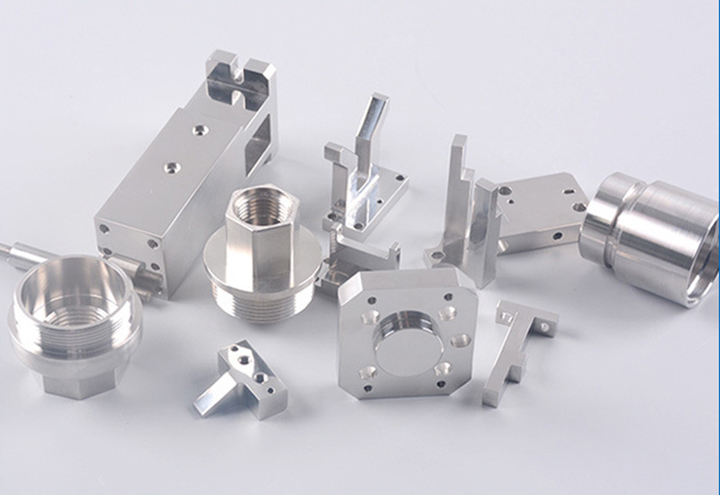

Samples of 3D CNC metal milling machine:
