Features:

1 .Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

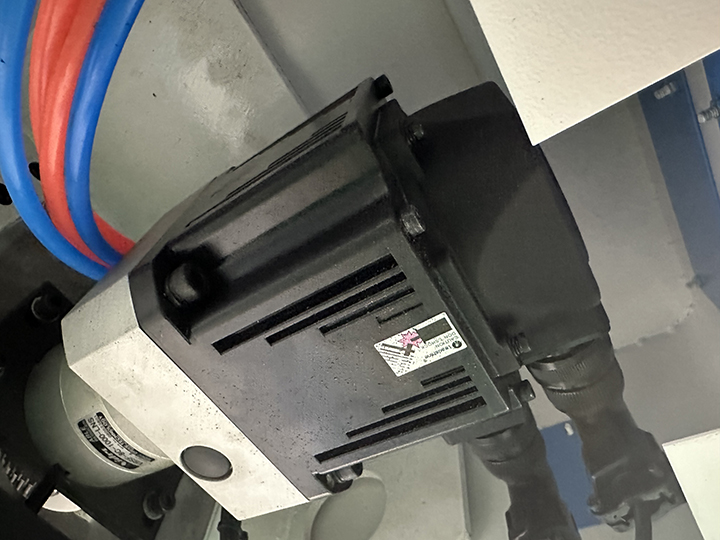

2. Servo motor with reducer makes machine stable running with low noise, high speed and high accuracy.

3. 9KW automatic tool changer spindle makes machine with high precision , long service time and stable movement.

4. Configured with following tool magazine of 12 tools, the machine can change tools speedy and freely.

5.Auto tool sensor enables the machine compensate the tolerance of the tool length.

6. Strong power suction vacuum pump make the workpiece more stable.

7. Taiwan controller, separated keyboard control with color LCD display, the hand wheel will help to operate freely.

8. Strong dust collector ensures site cleanliness during the machine operation.

9. Automatic lubricating system, one touch can finish periodic maintenance easily.

10. Automatic pushing system helps to push the cutting panel to another table, speedy the working efficiency.

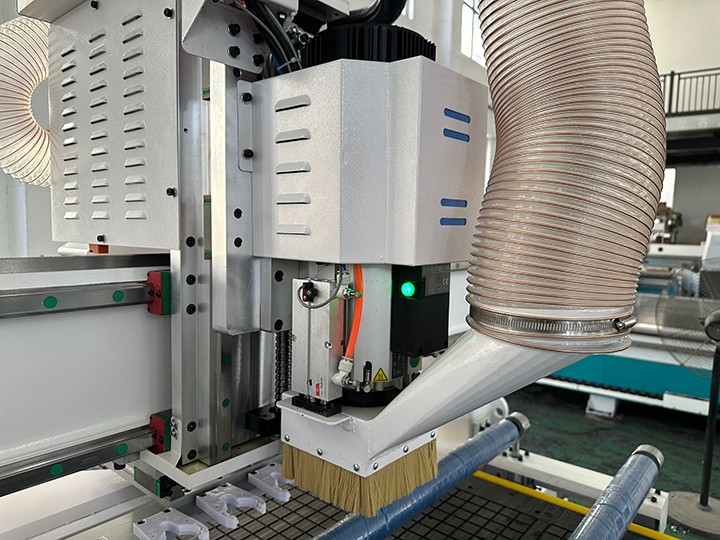

9kw HQD ATC spindle:

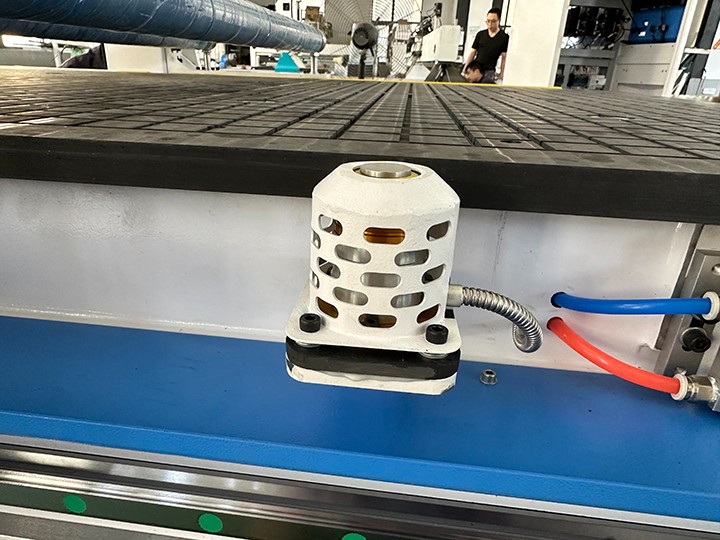

Auto tool sensor:

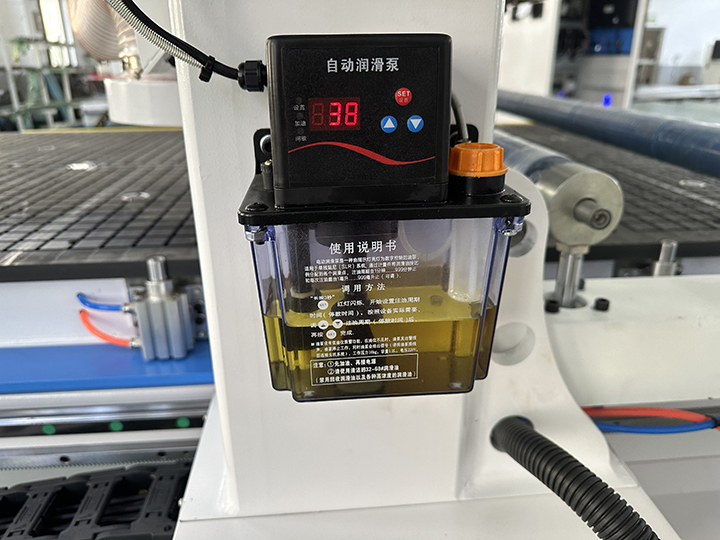

Automatic lubricating system:

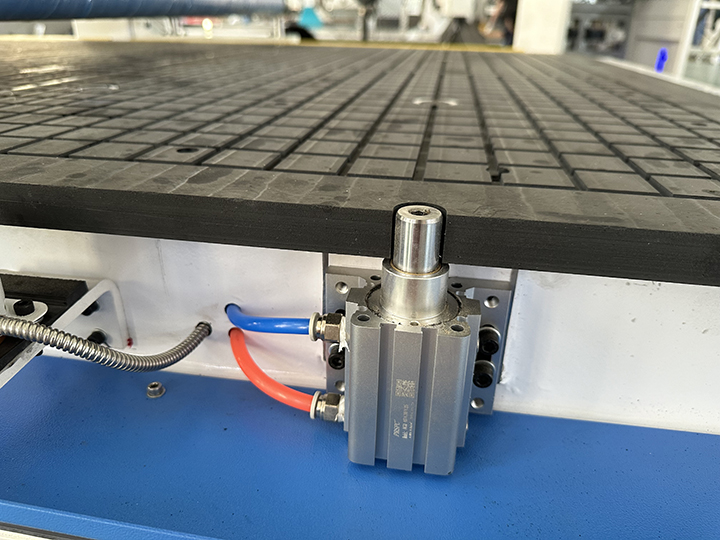

Cylinder position:

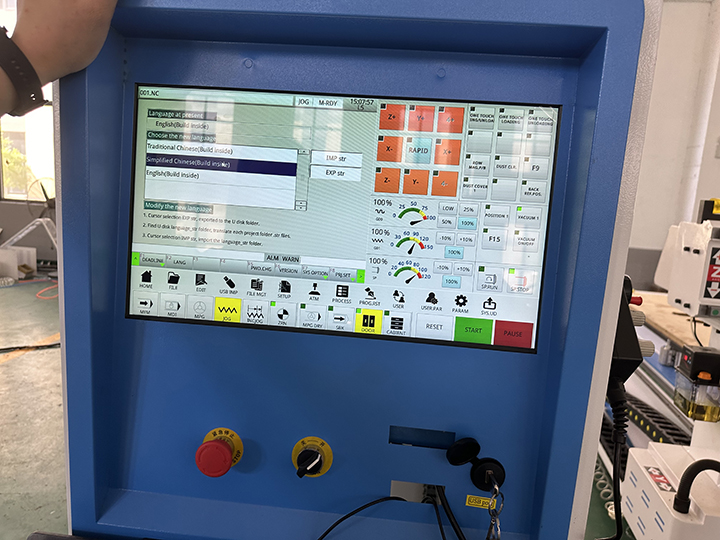

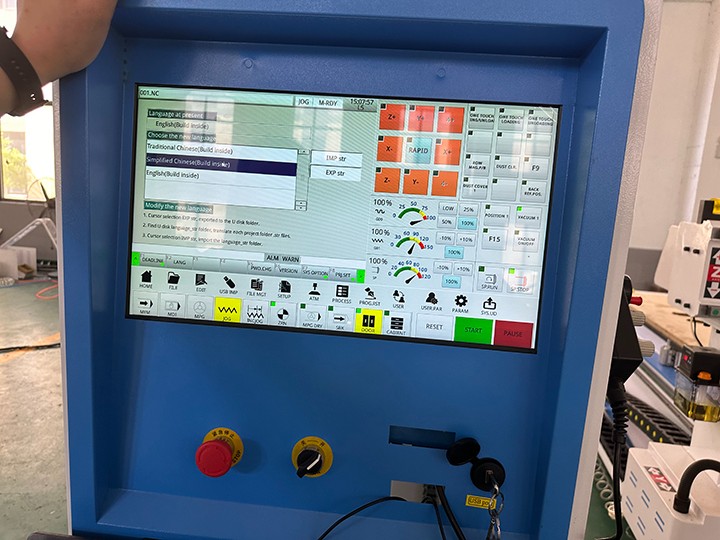

Taiwan LNC control system:

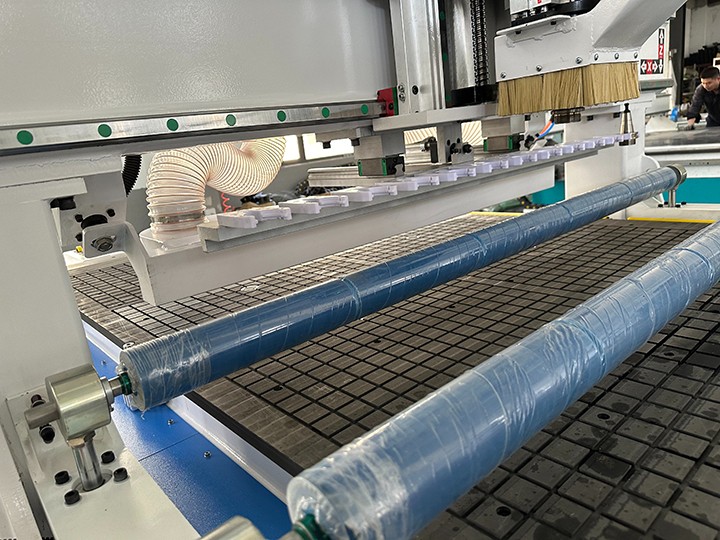

Pressure roller:

Application:

1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

2. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Package:

Warranty: one year warranty, any parts damaged in warranty, we will replace for free.

After sale service:

1. We offer life-long technical support by call, email.

2. Our technician can give you remote guide online if you have any question.

3. We can record videos of the machine operating.

4. Free training course in our factory.

5. Engineer available to service machinery overseas.

6. Machine will be adjusted before it is delivered, operation USB/CD will be included.
