Features:
Wide range: Can be used on many materials like metal, plastic, leather, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.
Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop. No need to adjust Q-switch easier than YAG diode marking machine.
High precision: 0.0025mm re-position accuracy. Minimum line width 0.01mm.
Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
Mini: Small footprint, easy to move and transportation. Size like a computer case.
Application:
Applicable Industries
Electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Technical parameters |
Model | EGJ-30F |
Laser power | 30W |
Laser source | JPT LP fiber laser |
Light wave length | 1064nm |
Laser modulation mode | Coupling amplification |
Marking area | 110*110mm/200*200mm/300*300mm can be optional |
Fiber Cable Length | 2m |
Pulse Width | 200 |
Repetition Frequency Range | 37-400kHz |
Output Power Stability | <5% |
M2 | <1.3 |
Max.Single Pulse Energy | 0.8mJ |
Output Beam Diameter | 7±0.5mm |
Power Range | 0%-100% |
Anti-Reflection Protection | Yes |
Cooling way | Air cooling |
Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
Operation system | Microsoft Windows 7 , Windows 8 or Windows 10 |
Control software | EZCAD control software marking control software |
Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
Packing size | 770*780*1550mm |
Package weight | 110kg |

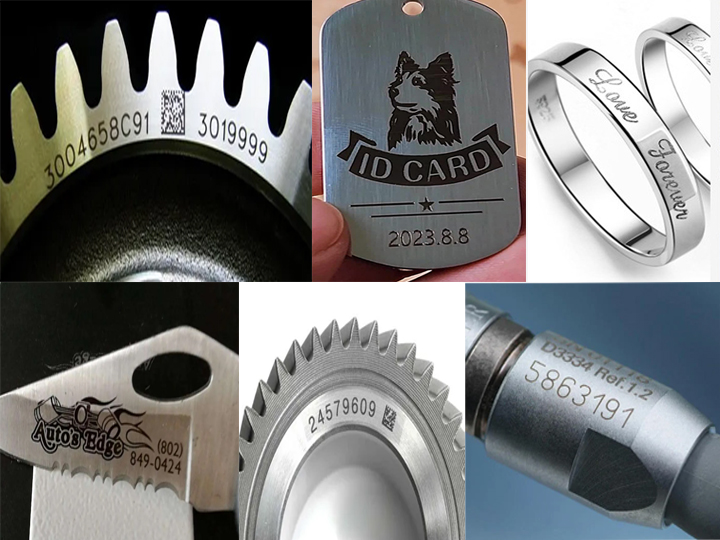

Samples:
Warranty: 3 years warranty, any parts damaged in warranty, we will replace for free.
After sale service:
1. We offer life-long technical support by call, email.
2. Our technician can give you remote guide online if you have any question.
3. We can record videos of the machine operating.
4. Free training course in our factory.
5. Engineer available to service machinery overseas.
6. Machine will be adjusted before it is delivered, operation USB/CD will be included.
