Key Features:
✔ Cold Laser Technology: Low-temperature UV beam ensures burr-free, smooth edges—ideal for heat-sensitive substrates.
✔ High Resolution: Achieve intricate designs, micro-text, or QR codes with 20–50μm spot size for stunning detail.
✔ Wide Compatibility: Engrave on glass awards, electronic components, jewelry, PVC, and even coated metals.
✔ User-Friendly Software: Intuitive controls support vector files, barcodes, serial numbering, and 3D relief engraving.
✔ Industrial Durability: Robust design with 20,000+ hours laser life for non-stop production.
Technical parameters:
Model | EGJ-5U |
Machine type | Ultraviolet laser |
Laser wavelength | 355 nm |
Output power | 5W |
Pulse length | ＜20ns@50Khz |
Marking area | 110X110(mm) |
Frequency tuning Q | 8KHz-15KHz |
Min line width | 0.01mm |
Min character | 0.2mm |
Accuracy of repetition | ±0.003mm |
Machine power | 1000~1800w |

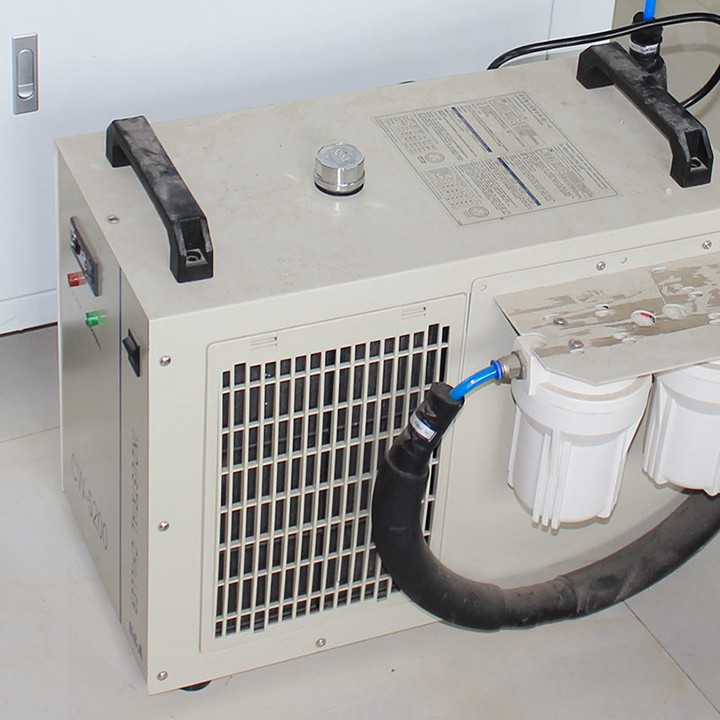

Cooling mode | Water cooling |
Electrical power requirement | 220V/Single phase/50Hz/10A |
Applications:
Personalized Gifts: Crystal trophies, wedding glassware, photo engravings.
Industrial Marking: Medical devices, PCB serial numbers, anti-counterfeit labels.
Creative Arts: Fine art reproductions, decorative glass, and acrylic signage.
Samples:
