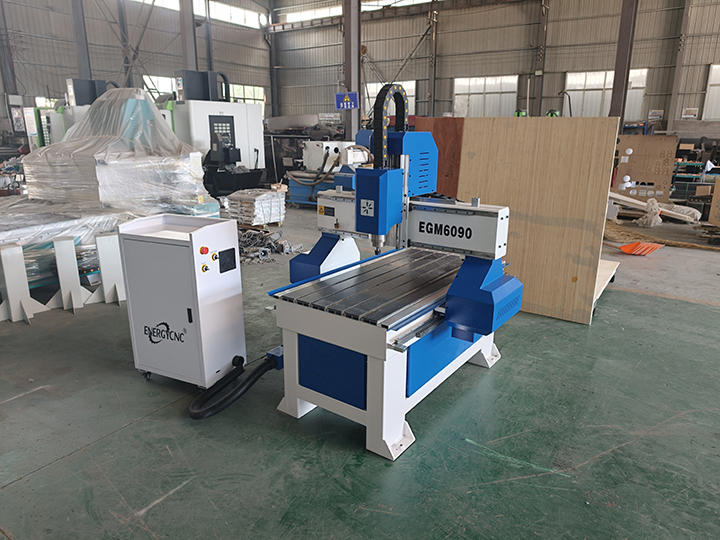

Features of 600*900mm CNC Wood Router Machine:
1.2.2KW water-cooling spindle could keep working at low noise level, safeguarding stability for long-time operation..
2.Imported all steel linear guide with high precision,ensure machine frame much stability and durability.
3.High accuracy rolling ball screw from Taiwan,assure machine frame of better precision.
4.Advanced DSP digital control system, offline controller with USB interface, continuation at stop point
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.
6.With 4 axis rotary device,it can carve on the cylinder materials.
Applications of 600*900mm CNC Wood Router Machine:
1.Wooden areas: main used in redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
2.Advertising: used in producing all models. Such as company plate, sings, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, furniture and other decoration.
3.Others: the machine is also can be used in copper,brass,aluminum, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relieve.
Technical paratmeters of 600*900mm CNC Wood Router Machine:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600x900x200mm |
2 | Table Size | 1050X750mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
5 | Z axis height | 200mm |
6 | Frame | Welding steel |
7 | X, Z Structure | Rack and pinion |
8 | Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. power Consumption | 0.8Kw |
10 | Max. Rapid Travel Rate | 8000mm/min |
11 | Max. Working Speed | 6000mm/min |
12 | Spindle Power Motor | 3.2kw water cooling spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Stepper system |
15 | Working Voltage | AC220V/50/60Hz |
16 | Command Language | G code |
17 | Operating System | AutoRich DSP |
18 | Interface | USB |
19 | Flash Memory | 128M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Artcam software (Option:Type3 software, Ucancam software) |
23 | Packing Size | 1500x1220x1700mm |
24 | Net Weight | 300KG |
25 | Gross Weight | 400KG |
Samples:
