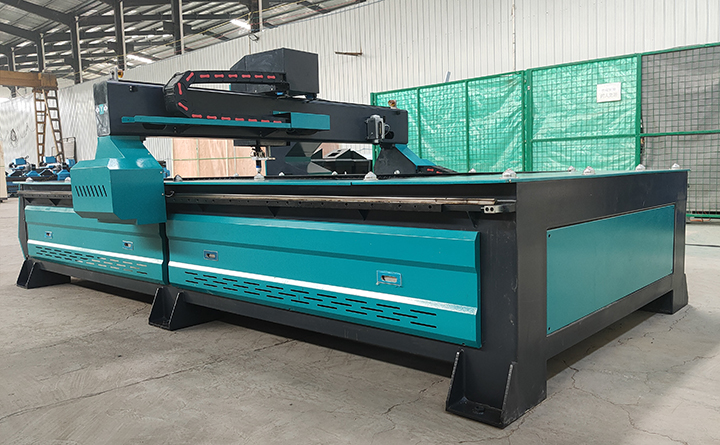

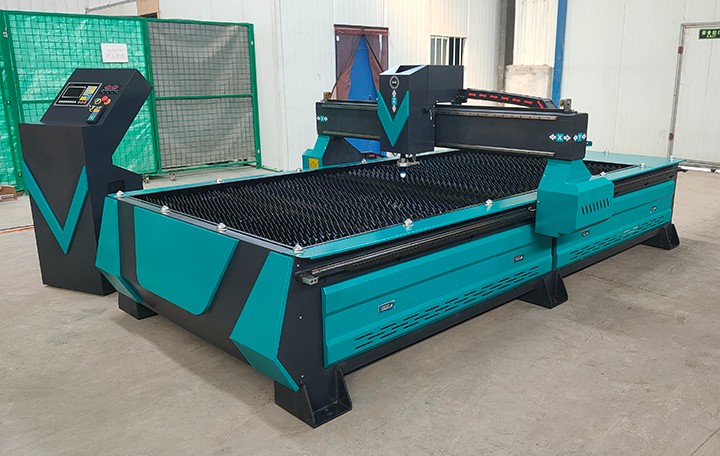

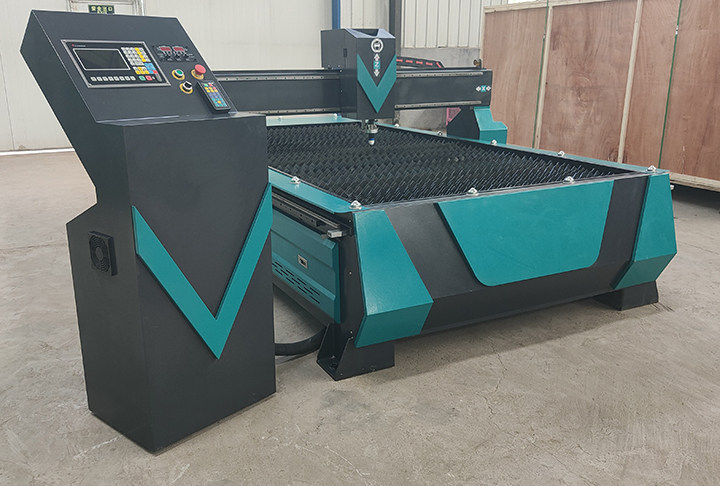

Features of CNC Plasma Cutter Table:
# Welded lathe bed of thick-wall profiled steel, more solid and stable.
#Reasonable lathe table design, thickersteel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
#The level difference of whole double-deck platform remains in 0-1.5mm.
#Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
#High accuracy and speed rack transmission.
#Lower noise, stable and accurate coordinates movement.
#Fastcam softwareprofessional for metal sheet tube cutting.
#power supply together with high sensitiveTouch Height Controller. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
#Best choice for all kind of different thickness material and heterotypic sheet cutting.
Technical parameters of CNC Plasma Cutter Table:
Model | EGP1530 |
Working area | 1500mm*3000mm |
Power supply | Chinese Huayuan |
Cutting thickness | 20mm |
Driving system | stepper motor |
Input Voltage | 380V,3 phase |
Guide way | Taiwan Hiwin Square guide rails |
Control system | Shanghai Starfire control system |
Connect way | USB |
Working Model | Untouched ARC striking |
Cutting speed | 0-7500mm/min (According to the materials) |
Graphic format supported | G code, *uoo, *mmg, *plt |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Application of CNC Plasma Cutter Table:
CNC Plasma Cutter Tables are often used in many industries, such as: automobiles, locomotives, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structures and other industries.

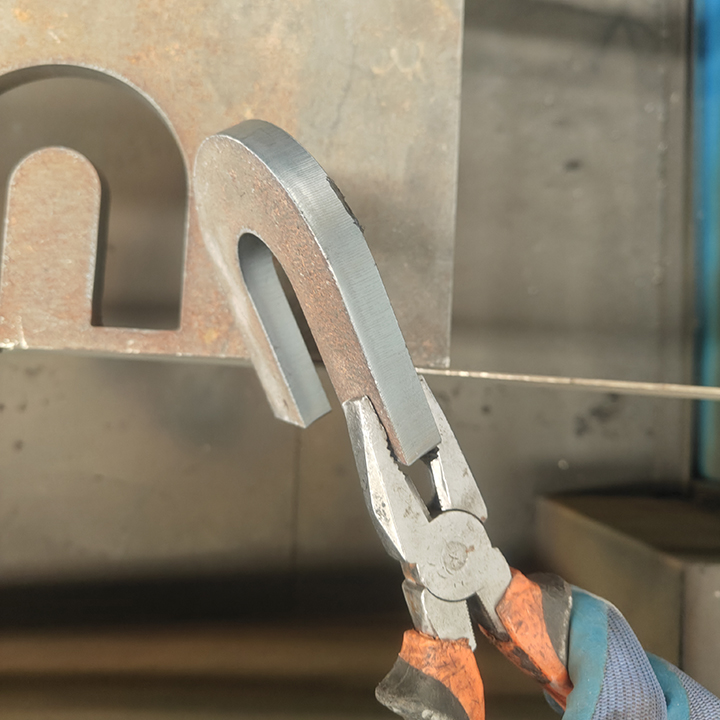

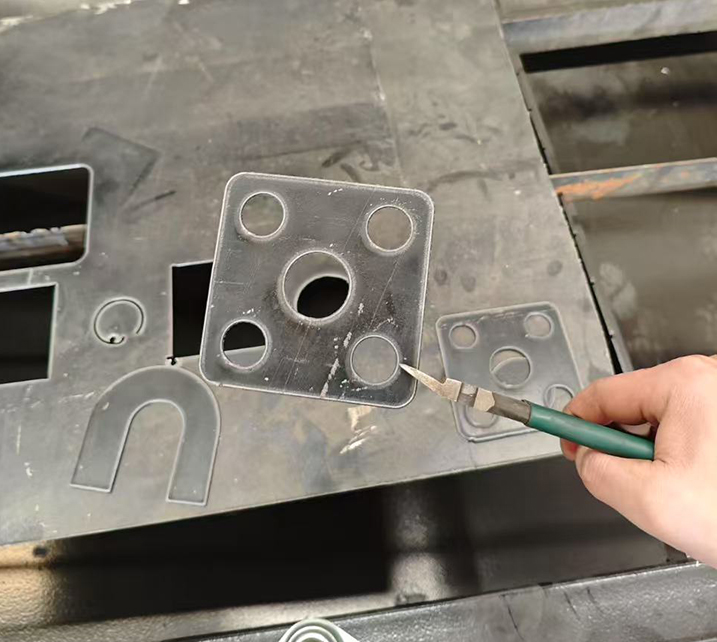

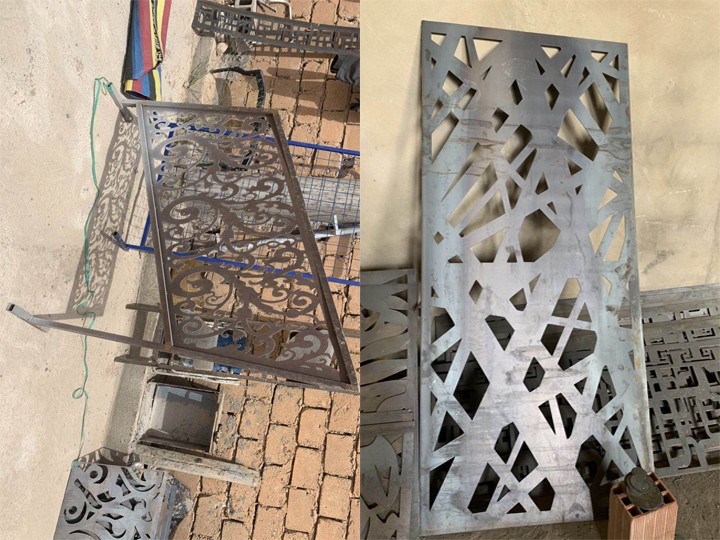

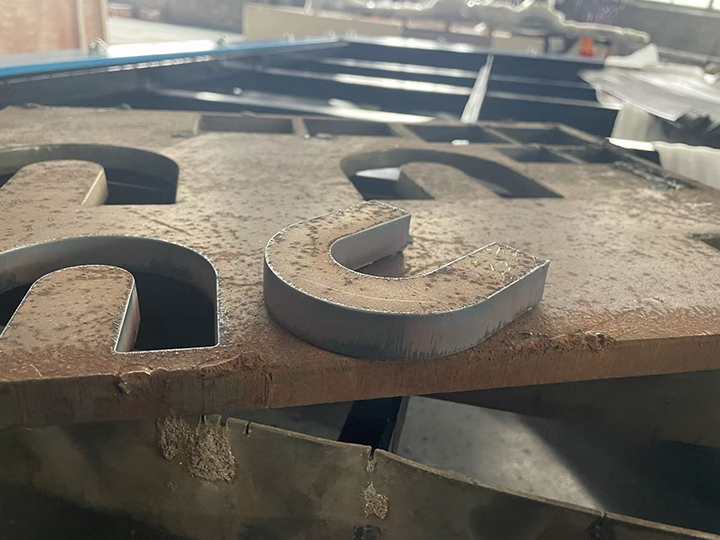

Samples of CNC Plasma Cutter Table:
